PDQ MR Series Mortise Lock
The PDQ MR series mortise lock is an industry standard product. Suitable for installation on doors 1-3/4" to 2" thick with standard trims, these products have a 1" throw investment cast stainless steel deadbolt (select functions).

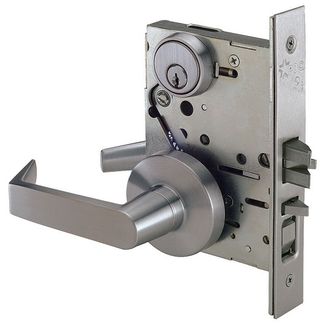

Lock image shown above:
In keyed function with Philadelphia (PJSJ) lever style in satin stainless steel (US32D/630).
Functions available:
Non-Keyed: Passage (MR126), Privacy (MR176),
Keyed: Storeroom (MR115), Entry/Office (MR116), Classroom (MR148), Entry/Apartment (MR154).
Details and product specs of the PDQ MR Series Mortise Lock:
| Armor Front: | 1 1/4 x 8" |
| Door Thickness: | 1 3/4" - 2" (standard) |
| Deadbolt: | On select functions |
| Latchbolt: | 3/4" throw, investment cast stainless steel/anti-friction. |
| Certifications: | UL listed for A-label (up to 3-hours) for application on labeled fire doors. ADA Compliant - Levers me all applicable accessibility requirements of the Americans with Disabilities Act (ADA). |
| Backset: | 2 3/4" only |
| Case: | 13-gauge cold rolled steel mechanism/dichromate for corrosion resistance. |
| Handed: | Yes - all mortis elocks are handed. |
| Cylinder & Keys: | A mortise cylinder is included with every keyed mortise lock (select functions). Each keyed mortise lock includes two (02) Keys per cylinder. |
| Keyway Options: | Schlage C, Arrow AR1, Corbin CL4, Sargent LA, Yale GA, LC-Less Cylinder |
| Strike Plate: | # 2815 Curved lip strike included: 1 1/4" x 4 7/8". |
| Keying | On select functions: Keyed Random (Standard); Keyed-Alike; Keyed Random x Master-Keyed. When Master-Keyed is ordered, you will receive at least two copies of the master key and one control key per order. |
| Mfg Model #: | MR___-___-630 |
| MDI Supply Item #: | PDQ-MR___ |
| Packaged & Sold: | Individually |
