Alarm Controls AES-200 Electric Strike, for use with Cylindrical Locksets, US32D-Satin Stainless Steel

Item #:
AC-AES-200-630
Retail Price:
$399.00
MDI Price:
$159.00 you save: $240.00 (60%)
Availability:
Usually ships the next business day
Qty.Price ea.You Save
1 - 2$159.00 ea.60%
3+$155.00 ea.61%
Finish:
Quantity:
  • Description
  • Downloads

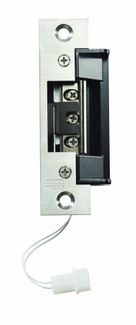

Alarm Controls AES-200 Electric Strike
Designed for medium-duty applications, the all-in-one AES-200 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8" throw in steel, wood or aluminum frames. Easy to install, east to connect and very easy to use with the built-in-buzzer.

Details and product specs of the Alarm Controls AES-200 Heavy Duty Electric Strike:

Warranty: Factory Limited Lifetime Limited Warranty
Specifications::

BHMA Grade 2, 1,000 lb. static strength
Factory tested to 500,000 cycles
Field selectable, fail secure/fail safe
Universal 12 through 24VAC or VDC input
Horizontally adjustable and pre-load capable
Strike Depth 1-1/2" with 5/8” throw
Fully reversible for right or left hand doors
Built in buzzer - sounds when voltage is applied

Standard Features: Electric strike kit includes:
– AES-200 strike body
– 4 7/8” round corner faceplate
– 4 7/8” square corner faceplate
7-15/16” round corner faceplate available - Model number STR00004
Current draw: 12VAC @ 200mA, 24VAC @ 70mA
Current draw: 12VDC @ 130mA, 24VDC @ 70mA
Finish:

US32D/630 - Satin Stainless Steel

Certifications:

Grade 2
UL294

Fire Rating: None.  This electric strike is not for use on fire rated doors.
Mfg Model #: AES-200
MDI Supply Item #: AC-AES-200-630
Packaged & Sold: Individually
  Alarm Controls Logo



Alarm Controls AES-200 Electric Strike
Designed for medium-duty applications, the all-in-one AES-200 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8" throw in steel, wood or aluminum frames. Easy to install and connect.

Details and product specs of the Alarm Controls AES-200 Heavy Duty Electric Strike:

Catalog: Catalog Section - AES-200 Electric Strike
