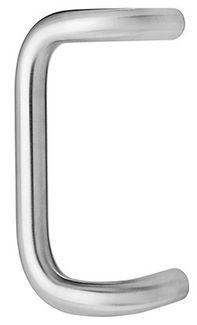

Rockwood BF158 Offset Pull Handle - 12" CTC
The Rockwood BF158 offset pull handle has a 90-degree offset with an 12" center-to-center (CTC) location, 1" diameter handle and projects off the door 3 1/2". This pull handle meets ANSI A156.6 Standards.
Details and product specs of the Rockwood BF156 Offset Pull Handle:
| Door Thickness Required: | 1 3/4" thick door |
| Material: | Aluminum, Brass, Bronze, Stainless Steel |
| Fastener: | 1⁄4-20 x 2-1⁄4 Thru Bolt & Finish Washer (standard 1-3⁄4" door) This is typical thru-bolt type mounting - standard for this pull handle. |
| Handle Diameter: | 1" Diameter |
| CTC (Center-To-Center): | 12" CTC |
| Overall: | 13" |
| Base: | 1" |
| Projection: | 3 1/2" |
| Clearance: | 2 1/2" |
| ANSI A156.6 | J402 |
| Handed: | No |
| Finishes Available: | 628 - Aluminum 630 - Satin Stainless Steel 313 - Anodized Dark Bronze |
| Mfg Model #: | BF158 |
| MDI Supply Item #: | RKWD-BF158 |
| Packaged & Sold: | Individually |
This product is special order and cannot be canceled, returned or exchanged.
